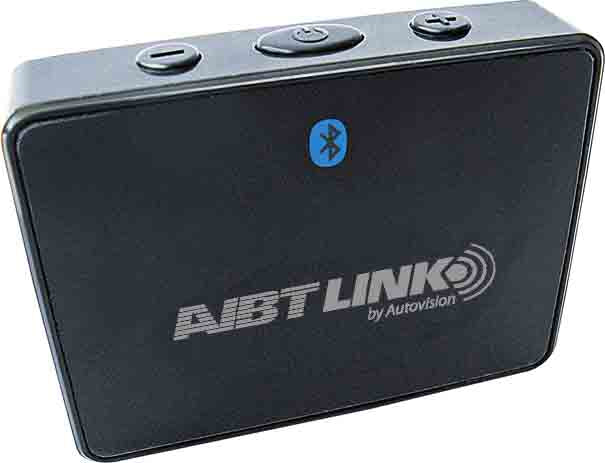

AV BT Link - Bluetooth receiver

The AV-BT can be used as a universal Bluetooth receiver so that an audio signal can be sent wirelessly via a Bluetooth connection to any sound reproduction device.

For example from a phone to an audio dock station, amplifier etc with Aux-in.

aptX bluetooth technology for superior music experience

The AV-BT can be connected in different ways:

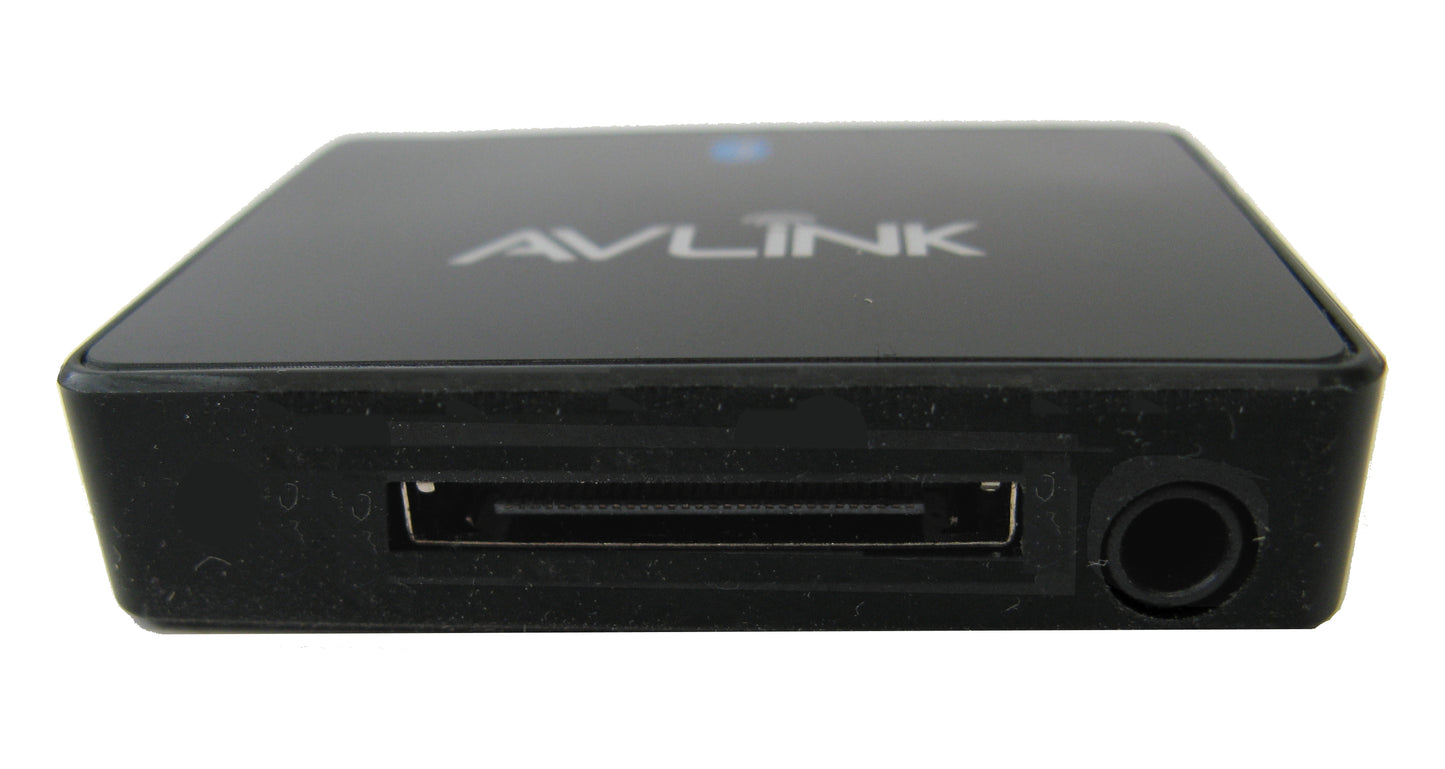

Built-in (at the bottom) Apple Dock connection (30 pins) up to iPhone 4

The AV-BT can be connected directly to an (old) Apple dock connection,

so that the iPhone 5 can also stream audio via Bluetooth to the Apple Dock.

The AV-BT is also charged in this way, or via the supplied USB>ipod cable.

3.5mm AUX OUT universal jack.

Any dock station with a 3.5mm AUX-in connection can connect wirelessly.

3.5 mm connection to turn Dock stations , headphones or earphones into a hands-free set, the AV-BT then has the following functions; built-in microphone, answer call, hang up, last number redial, volume control, activate voice dialing, Siri, S voice.



Audio Streaming features

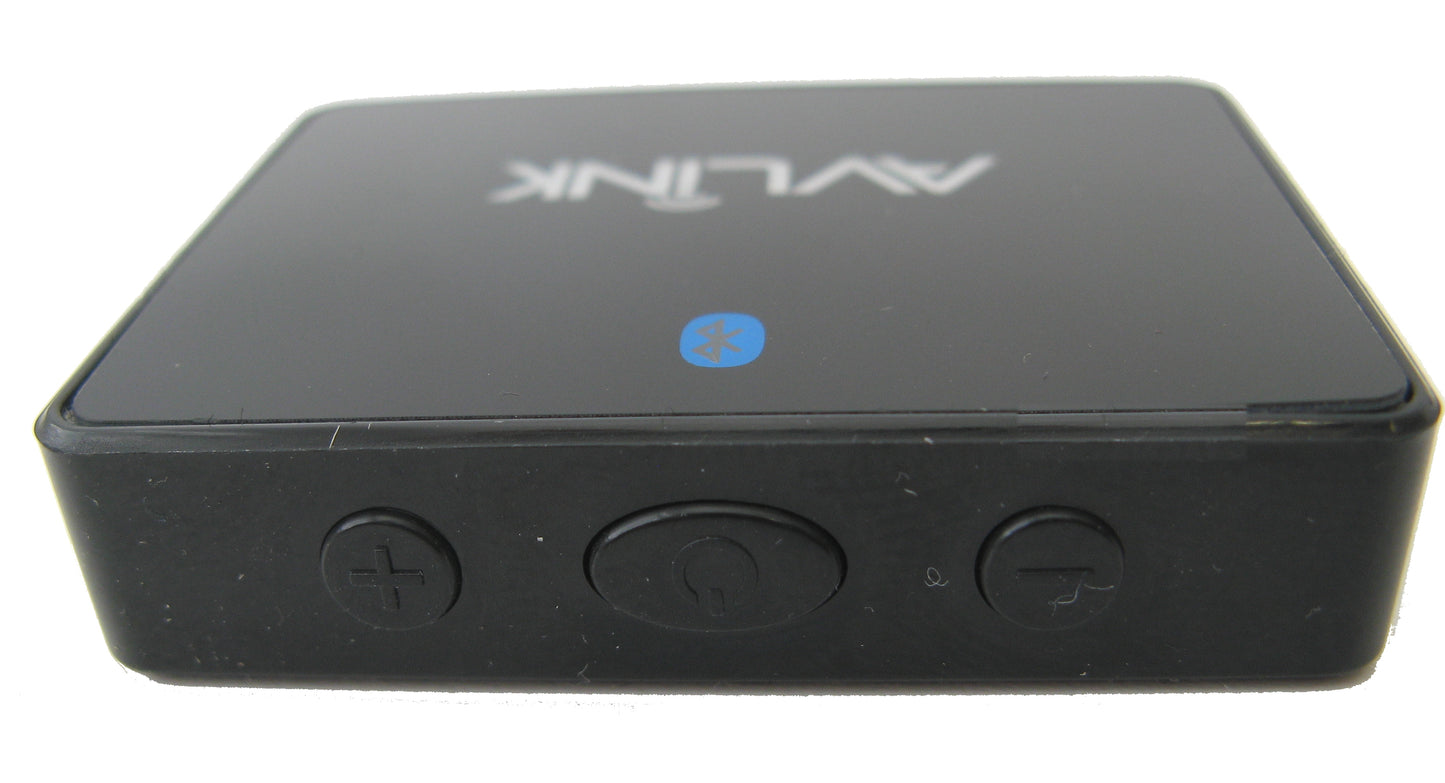

Next/previous track, pause, volume

Special iPhone Features

AV-BT can be paired with 2 iPhones at the same time

AV-BT shows the battery status in the iPhone display

Specifications:

Built-in battery life: 10-12 hours

Standby time: 10 days

Charging time: 2-3 hours with Apple connector

Range: > 10 m. 360°

Dimensions; 45x37x9.5mm

Weight: 19g

Bluetooth Version: V4. HFP, A2DP, AVRCP, PBAP

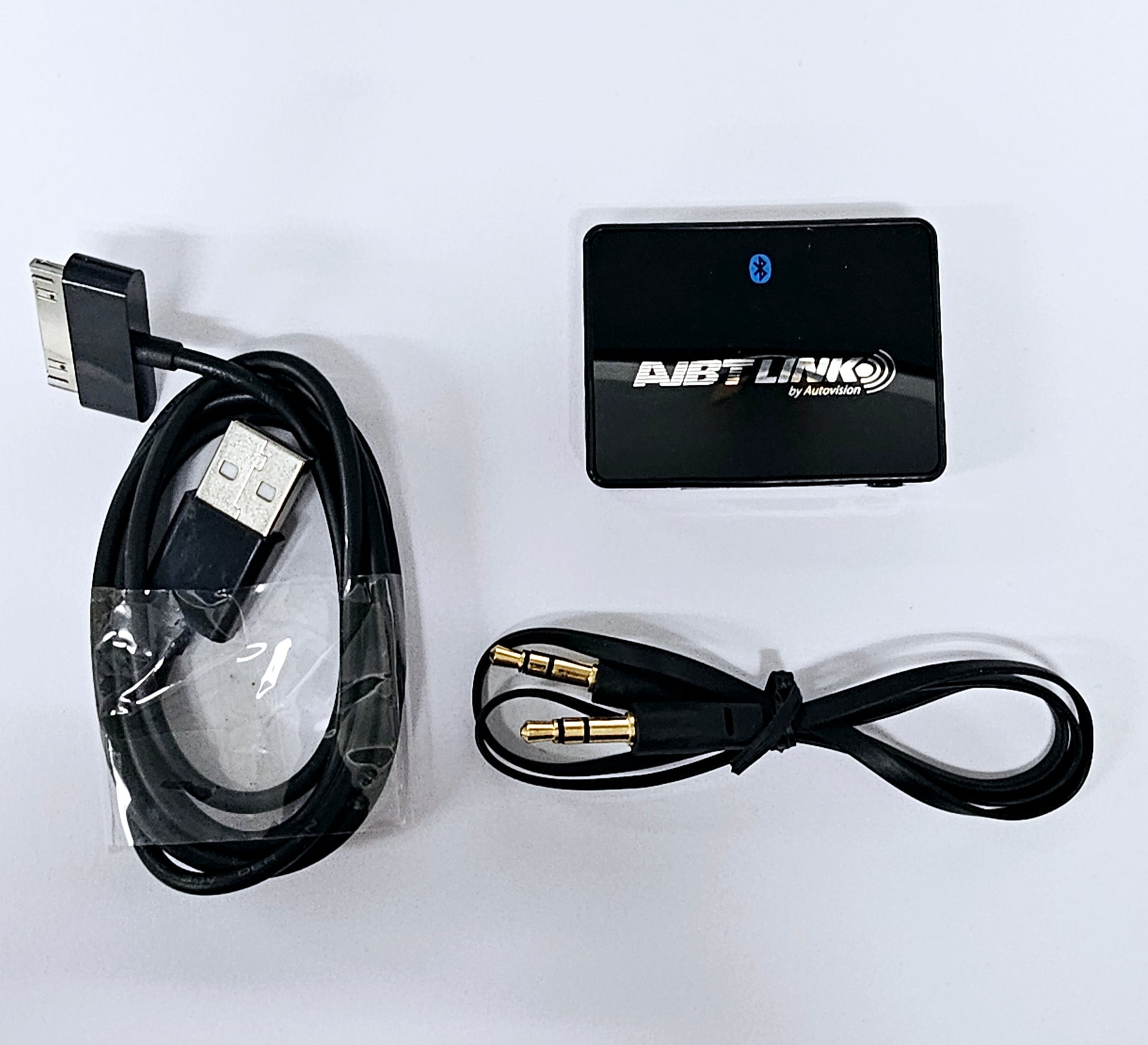

Supplied with 3.5 mm male-male Aux-in cable, and charging cable Apple > USB connection

Tested on the following iPod docks:

• Altec Lansing - iM600, iMT325, iMT620, M402, T612
• Apple - iPod Hi-Fi
• Beats by dr. Dre - Beat by Dr. Dre, Beat box
• Bose - SoundDock Portable*, SoundDock I, SoundDock II, SoundDock 10, SoundDock Portable digital music system, Wave System III with Connect Kit for iPod,
• Cyber ​​Acoustics - CA461
• Eton - Soulra XL Solar Speaker
• Geneva - Sound System Model L
• Harmon Kardon - Go + Play Stereo
• iCraig - CHT910, CMB3209 Alarm Clock
• iDeck - Integrated Car Cassette for iPod
• iHome - iA9, iA5, iA17, iA63, iA100, iD37, iD8, iD91, iH16U, iH4, iH5, iH6, iP1, iP2, iP4, iP9, iP11, iP21, iP23, iP37, iP87, iP90
• iLuv - iMM747, i9200 JWIN
• JBL - Onstage 2, On Stage 3, On Stage 4, On Beat, On Time 200P, On Time Micro
• Klipsch - iGroove iPod Dock
